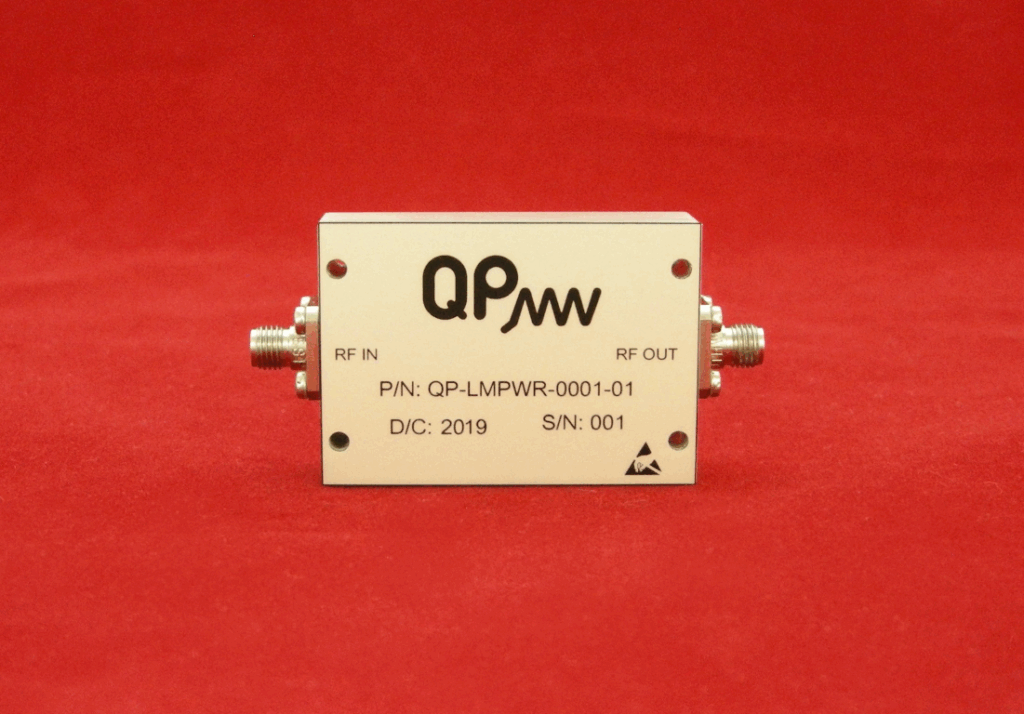

Data Table
| PARAMETER | Test condition | Min. | Typ. | Max. | Units |
|---|---|---|---|---|---|
| INSERTION LOSS | 0.96 GHz 1.215 GHz |
0.9 | dB | ||
| RETURN LOSS | 0.96 – 1.215 GHz | 15 | 17 | dB | |
| CW INCIDENT POWER | 0.96 – 1.215 GHz Tcase=85ºC |
48 (63) | dBm (W) | ||
| PEAK INCIDENT POWER | 0.96 – 1.215 GHz PW=1 µs, DC=1% |
60 (1) | dBm (kW) | ||
| CW FLAT LEAKAGE | 0.96 – 1.215 GHz Pin=20 dBm Pin=30 dBm |
6 12 |
dBm | ||
| PULSED FLAT LEAKAGE | 0.96 – 1.215 GHz Pin=60 dBm, PW=1 µs, DC=1% |
15 | dBm | ||
| RECOVERY TIME | 1 – 4 GHz | 1 | µs | ||
| IP1dB | 1 – 4 GHz | 8 | dBm | ||
| IN/OUT DC BLOCKING | YES | ||||
| SIZE | 50 × 35 × 15 | mm | |||
| CONNECTOR IN | SMA (F) | ||||
| CONNECTOR OUT | SMA (F) |
Environmental Ratings
| TEMPERATURE: | -40ºC TO +85ºC (OPERATING) -55ºC TO +125ºC (STORAGE) |
| HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
| SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
| VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
| ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
| TEMP. SHOCK: | MIL-STD-202G, METHOD 107D COND. A |
