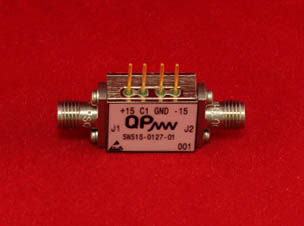

Data Table
PARAMETER | TEST CONDITION | MIN. | TYP. | MAX. | UNITS |
---|
INSERTION LOSS | 1 - 27 GHz | | 3 | 4 | dB |
VSWR (J1 / J2) ON | 1 - 27 GHz | | 2.2:1 | 2.5:1 | |
VSWR (J1) OFF | 1 - 27 GHz | | 2:1 | 2.5:1 | |
ISOLATION | 1 - 27 GHz | 60 | | | dB |
SWITCHING TIME (ON) | 1 - 27 GHz | | 20 | 25 | ns |
SWITCHING TIME (OFF) | 1 - 27 GHz | | 12 | 15 | ns |
Vdd | | | +5 | | V |
Idd | | | | 20 | mA |
Vss | | -15 | | -5 | V |
Iss | | | | 20 | mA |
SIZE | | | 13.5 × 17.5 × 8.5 | | mm |
Environmental Ratings
|
TEMPERATURE: | -40ºC TO +85ºC (OPERATING) |
| -55ºC TO +125ºC (STORAGE) |
HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
TEMP. SHOCK: | MIL-STD-202G, METHOD 107G COND. A |
