Data Table
| PARAMETER | Test condition | Min. | Typ. | Max. | Units |
|---|---|---|---|---|---|
| POWER HANDLING | 22dB | ||||
| INSERTION LOSS | 18 GHz | 1.0 | dB | ||
| SLOPE | 0.5 – 18 GHz | 18 ± 0.75 | dB | ||
| VSWR | 0.5 – 18 GHz | 1.4:1 | 1.8:1 | ||
| SIZE | 13.8 x 4.95 x 3.29 | mm |
Assembly Recommendations

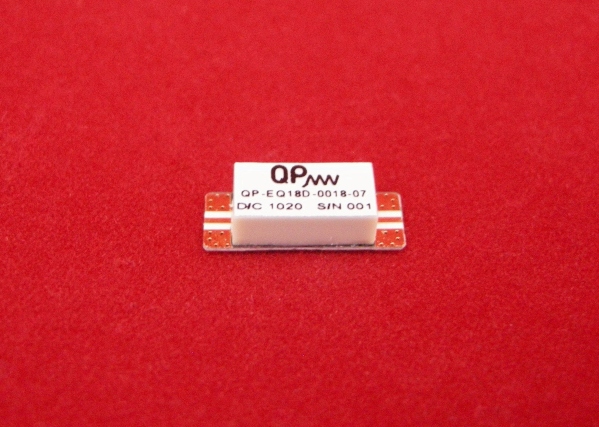

Miniature surface mount package.
Reflow solder/ epoxy attach (Recommended).
Wire bondable gold pads.
