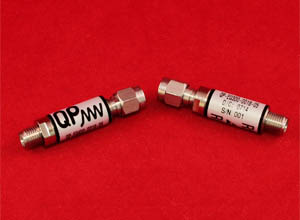

Data Table
| PARAMETER | Test condition | Min. | Typ. | Max. | Units |
|---|---|---|---|---|---|
| INSERTION LOSS | 18 GHz | 1.0 | dB | ||
| SLOPE | 0.5 – 18 GHz | 3 ± 0.5 | dB | ||
| VSWR | 0.5 – 18 GHz | 1.4:1 | 1.8:1 | ||
| SIZE | Ø10.25 × 41.8 | mm | |||
| RF CONNECTOR IN | SMA (F)/SMA (M) | ||||
| RF CONNECTOR OUT | SMA (M)/SMA (F) |
Environmental Ratings
| TEMPERATURE: | -40ºC TO +85ºC (OPERATING) -55ºC TO +125ºC (STORAGE) |
| HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
| SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
| VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
| ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
| TEMP. SHOCK: | MIL-STD-202G, METHOD 107G COND. A |
