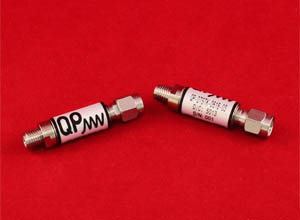

Data Table

PARAMETERTEST CONDITIONMIN.TYP.MAX.UNITS
VSWR6 - 18 GHz2.5:14:1
SENSITIVITY6 - 18 GHz22002600mV/mW
FLATNESS6 - 18 GHz
@ -20 dBm
±1dB
OUTPUT CAPACITANCE10pF
VIDEO IMPEDANCE100350Ohm
BIAS150µA
POWER HANDLING CW
PULSED (25% D.C.)
+20
+26
dBm
SIZEØ10.25 × 41.8mm
RF CONNECTOR INSMA (M)
RF CONNECTOR OUTSMA (F)

Environmental Ratings

TEMPERATURE:-40ºC TO +85ºC (OPERATING)
-55ºC TO +125ºC (STORAGE)
HUMIDITY:MIL-STD-202G, METHOD 103B COND. B
SHOCK:MIL-STD-202G, METHOD 213B COND. B
VIBRATION:MIL-STD-202G, METHOD 204D COND. B
ALTITUDE:MIL-STD-202G, METHOD 105C COND. B
TEMP. SHOCK:MIL-STD-202G, METHOD 107G COND. A
