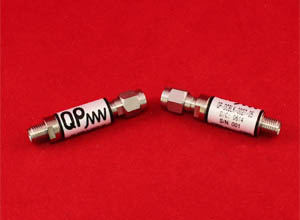

Data Table

PARAMETERTEST CONDITIONMIN.TYP.MAX.UNITS
INSERTION LOSS0.01 - 27 GHz11.5dB
VSWR0.01 - 27 GHz1.2:11.5:1
DC VOLTAGE50V
RF POWER0.01 - 27 GHz1W
SIZEØ10.25 × 41.8mm
RF CONNECTOR INSMA (F)/SMA (M)
RF CONNECTOR OUTSMA (M)/SMA (F)

Environmental Ratings

TEMPERATURE:-40ºC TO +85ºC (OPERATING)
-55ºC TO +125ºC (STORAGE)
HUMIDITY:MIL-STD-202G, METHOD 103B COND. B
SHOCK:MIL-STD-202G, METHOD 213B COND. B
VIBRATION:MIL-STD-202G, METHOD 204D COND. B
ALTITUDE:MIL-STD-202G, METHOD 105C COND. B
TEMP. SHOCK:MIL-STD-202G, METHOD 107G COND. A
