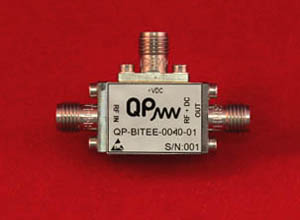

Data Table
| PARAMETER | Test condition | Min. | Typ. | Max. | Units |
|---|---|---|---|---|---|
| INSERTION LOSS | 0.5 – 40 GHz | 1.5 | 1.8 | dB | |
| VSWR | 0.5 – 40 GHz | 1.6:1 | 2.0:1 | ||
| DC VOLTAGE | 50 | V | |||
| DC CURRENT | 1000 | mA | |||
| SIZE | 13.5 × 17.5 × 8.5 | mm | |||
| CASE | A | ||||
| DC CONNECTOR | SMA (F) | ||||
| RF CONNECTOR | 2.92mm (M) | ||||
| RF + DC CONNECTOR | 2.92mm (F) |
Environmental Ratings
| TEMPERATURE: | -40ºC TO +85ºC (OPERATING) -55ºC TO +125ºC (STORAGE) |
| HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
| SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
| VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
| ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
| TEMP. SHOCK: | MIL-STD-202G, METHOD 107G COND. A |
