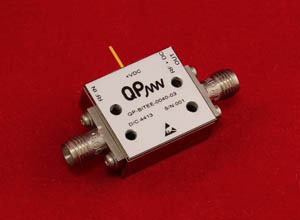

Data Table

PARAMETERTEST CONDITIONMIN.TYP.MAX.UNITS
INSERTION LOSS0.5 - 40 GHz1.51.8dB
VSWR0.5 - 40 GHz1.6:12.0:1
DC VOLTAGE50V
DC CURRENT1000mA
SIZE19.1 × 21.2 × 9.3mm
CASEAb
DC CONNECTORPIN
RF CONNECTOR2.92mm (F)
RF + DC CONNECTOR2.92mm (F)

Environmental Ratings

TEMPERATURE:-40ºC TO +85ºC (OPERATING)
-55ºC TO +125ºC (STORAGE)
HUMIDITY:MIL-STD-202G, METHOD 103B COND. B
SHOCK:MIL-STD-202G, METHOD 213B COND. B
VIBRATION:MIL-STD-202G, METHOD 204D COND. B
ALTITUDE:MIL-STD-202G, METHOD 105C COND. B
TEMP. SHOCK:MIL-STD-202G, METHOD 107G COND. A
