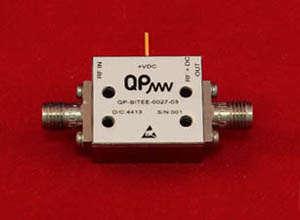

Data Table
PARAMETER | TEST CONDITION | MIN. | TYP. | MAX. | UNITS |
---|
INSERTION LOSS | 0.5 - 27 GHz | | 1.3 | 1.6 | dB |
VSWR | 0.5 - 27 GHz | | 1.5:1 | 1.8:1 | |
DC VOLTAGE | | | | 50 | V |
DC CURRENT | | | | 1000 | mA |
SIZE | | | 19.1 × 21.2 × 9.3 | | mm |
CASE | | | Ab | | |
DC CONNECTOR | | | PIN | | |
RF CONNECTOR | | | SMA (F) | | |
RF + DC CONNECTOR | | | SMA (F) | | |
Environmental Ratings
|
TEMPERATURE: | -40ºC TO +85ºC (OPERATING) |
| -55ºC TO +125ºC (STORAGE) |
HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
TEMP. SHOCK: | MIL-STD-202G, METHOD 107G COND. A |
