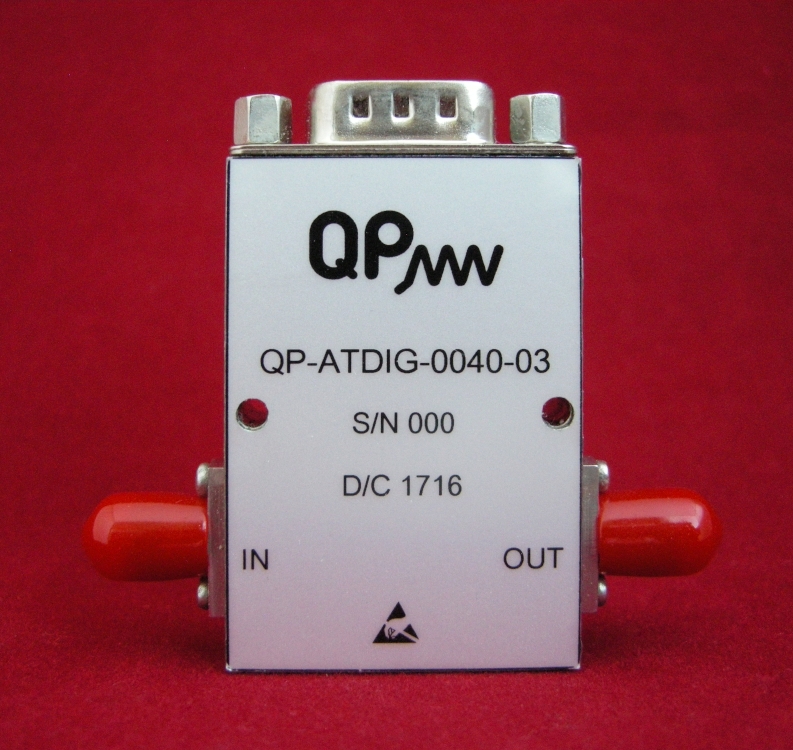

Data Table
| PARAMETER | TEST CONDITION | MIN. | TYP. | MAX. | UNITS |
|---|---|---|---|---|---|
| INSERTION LOSS | 0.1 - 40 GHz | 10 | dB | ||
| VSWR | 0.1 - 40 GHz | 1.8:1 | 2.5:1 | ||
| ATTENUATION STEP | 0.1 - 40 GHz | 0.025 | dB | ||
| ATTENUATION RANGE | 0.1 - 40 GHz | 48 | dB | ||
| ATTENUATION WORD | 0.1 - 40 GHz | 11 | bits | ||
| CONTROL TYPE | SPI | ||||
| ATTENUATION ACCURACY | 0.1 - 40 GHz | ±4 | dB | ||
| SWITCHING TIME | 0.1 - 40 GHz | 100 | ns | ||
| POWER HANDLING | 0.1 - 40 GHz | 24 | dBm | ||
| Vdd | +5 | V | |||
| Idd | 50 | mA | |||
| Vss | -5 | V | |||
| Iss | 50 | mA | |||
| SIZE | 20 × 31.75 × 9 | mm | |||
| CASE | G | ||||
| RF CONNECTORS | 2.92 mm (F) | ||||
| CONTROL INTERFACE | SOLDER PINS | ||||
Environmental Ratings
| TEMPERATURE: | -40ºC TO +85ºC (OPERATING) |
| -55ºC TO +125ºC (STORAGE) | |
| HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
| SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
| VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
| ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
| TEMP. SHOCK: | MIL-STD-202G, METHOD 107G COND. A |
