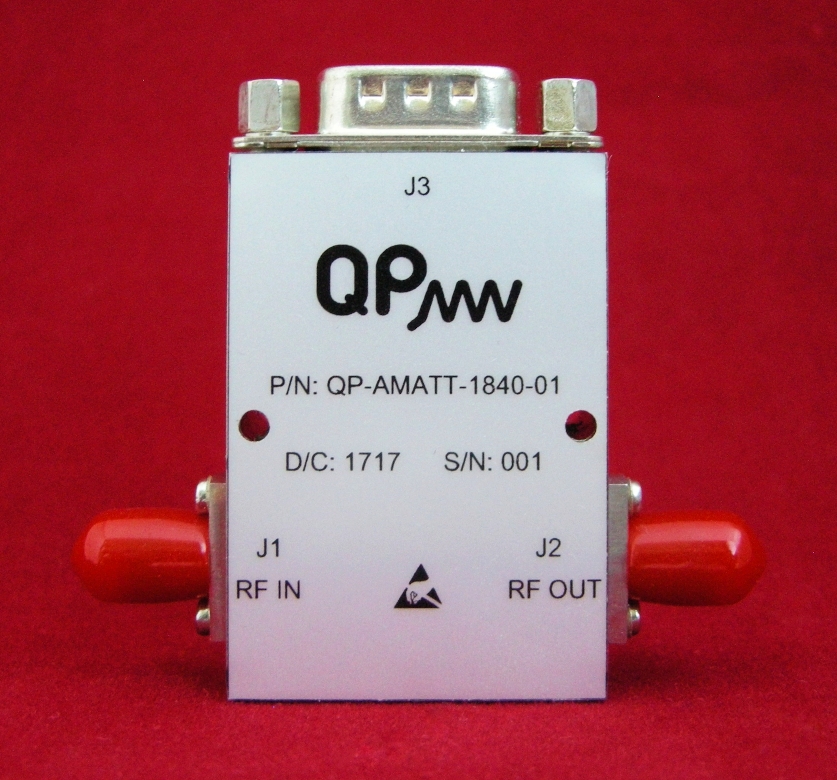

Data Table
| PARAMETER | TEST CONDITION | MIN. | TYP. | MAX. | UNITS |
|---|---|---|---|---|---|
| GAIN | 18 - 40 GHz | 18 | 20 | 22 | dB |
| ATTENUATION RANGE | 18 - 40 GHz | 25 | dB | ||
| FLATNESS | 18 - 40 GHz 0dB ATT. | -2 | 2 | dB | |
| FLATNESS | 18 - 40 GHz 25dB ATT. | -3 | 3 | dB | |
| OP1dB | 18 - 40 GHz 0dB ATT. | 10 | dBm | ||
| OIP3 | 18 - 40 GHz 0dB ATT. | 20 | dBm | ||
| OIP3 | 18 - 40 GHz 25dB ATT. | 7 | dBm | ||
| NOISE FIGURE | 18 - 32 GHz 32 - 40 GHz 0dB ATT. | 10 12 | dBm | ||
| NOISE FIGURE | 18 - 40 GHz 25dB ATT. | 35 | dBm | ||
| VSWR | 18 - 40 GHz | 2:1 | |||
| DC VOLTAGE | 18 - 40 GHz | 12 | V | ||
| DC CURRENT | 18 - 40 GHz | 600 | mA | ||
| INTERFACE | SPI | ||||
| RF POWER | 18 - 40 GHz | 15 | dBm | ||
| SIZE | 12.9 × 44.76 × 30.9 | mm | |||
| CASE | S | ||||
| RF CONNECTOR IN | 2.92 mm (F) | ||||
| RF CONNECTOR OUT | 2.92 mm (F) |
Environmental Ratings
| TEMPERATURE: | -40ºC TO +85ºC (OPERATING) |
| -55ºC TO +125ºC (STORAGE) | |
| HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
| SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
| VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
| ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
| TEMP. SHOCK: | MIL-STD-202G, METHOD 107G COND. A |
