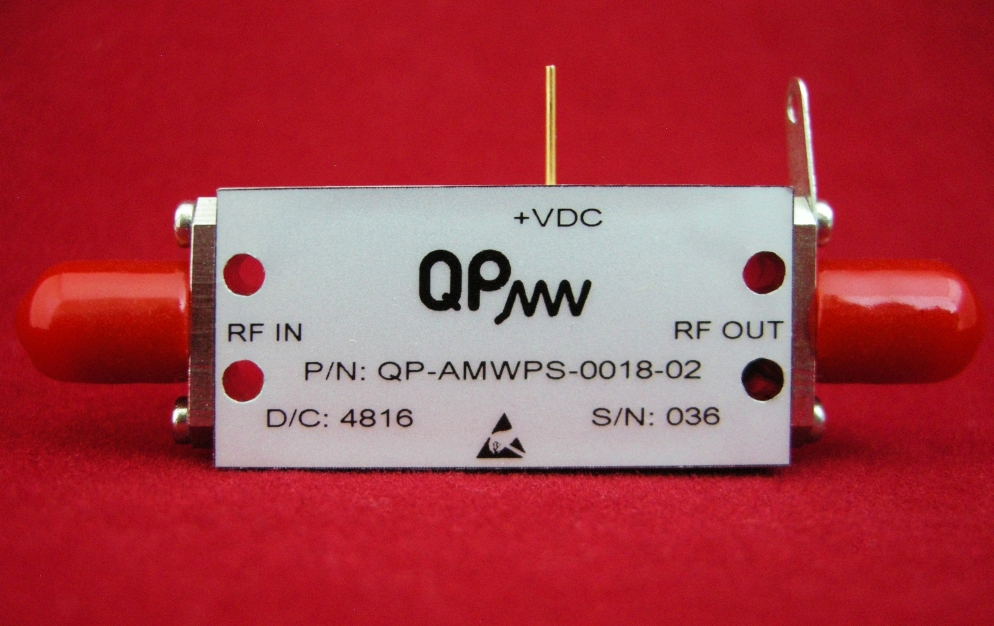

Data Table
| PARAMETER | TEST CONDITION | MIN. | TYP. | MAX. | UNITS |
|---|---|---|---|---|---|
| GAIN | 0.5 GHz 2 GHz 6 GHz 12 GHz 18 GHz | 13 14 16 19 2 2 | dB | ||
| TEMPERATURE SHIFT | 0.5 - 18 GHz 0 TO +70ºC | 0.04 | dB/ºC | ||
| NOISE FIGURE | 0.5 -2 GHz 2 - 10 GHz 10 - 18 GHz | 9 7 5 | dB | ||
| NOISE FIGURE DRIFT | 0.5 - 18 GHz 0 TO +70ºC | ±2 | dB | ||
| IP1dB | 0.5 -2 GHz 2 - 10 GHz 10 - 18 GHz | -2 -4 -6 | dB | ||
| OP1dB | 0.5 -2 GHz 2 - 10 GHz 10 - 18 GHz | 12 14 16 | dB | ||
| IP2 | Fout = 18 GHz Pout = -10 dBm | 16 | dBm | ||
| IP3 | Fout = 18 GHz Pout = -10 dBm | 13 | dBm | ||
| OIP3 | Fout = 18 GHz Pout = -10 dBm | 35 | dBm | ||
| HP2 | Fin = 9 GHz Pin= -15 dBm | 30 | dBc | ||
| HP3 | Fin = 6 GHz Pin = -15 dBm | 50 | dBc | ||
| VSWR | 0.5 - 18 GHz | 2:1 | |||
| DC VOLTAGE | 0.5 - 18 GHz | 10.5 | 16 | V | |
| DC CURRENT | 0.5 - 18 GHz | 165 | mA | ||
| RF POWER | 0.5 - 18 GHz | 18 | dBm | ||
| SIZE | 16.8 x 34.5 × 6.6 | mm | |||
| CASE | T | ||||
| RF IN CONNECTOR | SMA (F) | ||||
| RF OUT CONNECTOR | SMA (F) |
Environmental Ratings
| TEMPERATURE: | -40ºC TO +85ºC (OPERATING) |
| -55ºC TO +125ºC (STORAGE) | |
| HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
| SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
| VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
| ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
| TEMP. SHOCK: | MIL-STD-202G, METHOD 107G COND. A |
