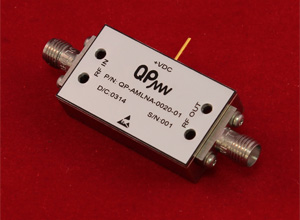

Data Table
| PARAMETER | Test condition | Min. | Typ. | Max. | Units |
|---|---|---|---|---|---|
| GAIN | 0.5 – 20 GHz | 14 | dB | ||
| FLATNESS | 0.5 – 20 GHz | ±1.5 | dB | ||
| NOISE FIGURE | 0.5 – 20 GHz | 3.5 | dB | ||
| OP1dB | 0.5 – 20 GHz | 15 | dBm | ||
| OIP3 | 0.5 – 20 GHz | 25 | dBm | ||
| VSWR | 0.5 – 20 GHz | 2:1 | |||
| DC VOLTAGE | 0.5 – 20 GHz | 12 | 15 | V | |
| DC CURRENT | 0.5 – 20 GHz | 150 | mA | ||
| RF POWER | 0.5 – 20 GHz | 18 | dBm | ||
| SIZE | 19 × 33.7 × 9.3 | mm | |||
| CASE | C | ||||
| RF IN CONNECTOR | SMA (F) | ||||
| RF OUT CONNECTOR | SMA (F) |
Environmental Ratings
| TEMPERATURE | -40ºC TO +85ºC (OPERATING) -55ºC TO +125ºC (STORAGE) |
| HUMIDITY | MIL-STD-202G, METHOD 103B COND. B |
| SHOCK | MIL-STD-202G, METHOD 213B COND. B |
| VIBRATION | MIL-STD-202G, METHOD 204D COND. B |
| ALTITUDE | MIL-STD-202G, METHOD 105C COND. B |
| TEMP. SHOCK | MIL-STD-202G, METHOD 107G COND. A |
