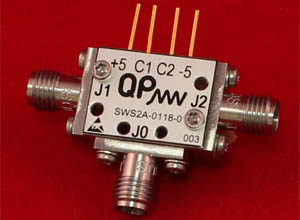

Data Table

PARAMETERTEST CONDITIONMIN.TYP.MAX.UNITS
INSERTION LOSS1 - 18 GHz5dB
VSWR (J0 to J1)1 - 18 GHz2.5:1
VSWR (J0 to J2)1 - 18 GHz2.5:1
ISOLATION1 - 18 GHz60dB
SWITCHING TIME (ON)1 - 18 GHz25ns
SWITCHING TIME (OFF)1 - 18 GHz25ns
RF INPUT POWER1 - 18 GHz23dBm
Vdd+5V
Idd50mA
Vss-15-5V
Iss50mA
SIZE13.5 × 17.5 × 8.5mm

Environmental Ratings

TEMPERATURE:-40ºC TO +85ºC (OPERATING)
-55ºC TO +125ºC (STORAGE)
HUMIDITY:MIL-STD-202G, METHOD 103B COND. B
SHOCK:MIL-STD-202G, METHOD 213B COND. B
VIBRATION:MIL-STD-202G, METHOD 204D COND. B
ALTITUDE:MIL-STD-202G, METHOD 105C COND. B
TEMP. SHOCK:MIL-STD-202G, METHOD 107G COND. A
