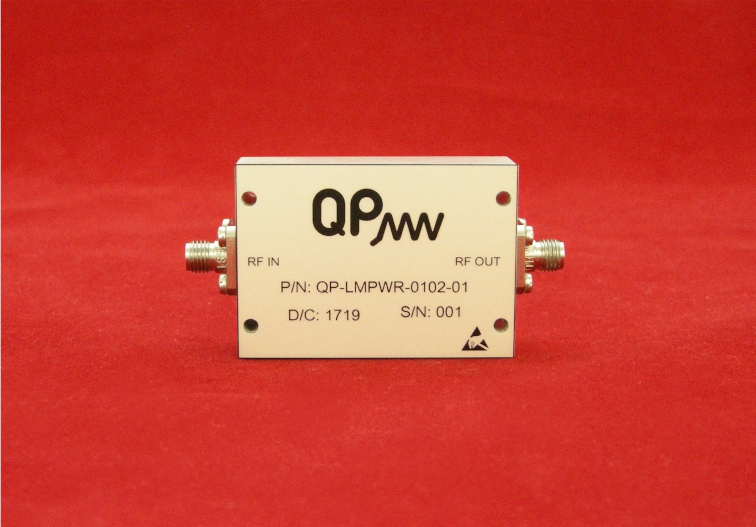

Data Table
| PARAMETER | TEST CONDITION | MIN. | TYP. | MAX. | UNITS |
|---|---|---|---|---|---|
| INSERTION LOSS | 1 GHz 2 GHz | 0.5 0.75 | 1 | dB | |
| RETURN LOSS | 1 - 2 GHz | 15 | 18 | dB | |
| CW INCIDENT POWER | 1 - 2 GHz Tcase=85ºC | 50 (100) | dBm (W) | ||
| PEAK INCIDENT POWER | 1 - 2 GHz PW=25 µs, DC=5% | 60 (1) | dBm (kW) | ||
| CW FLAT LEAKAGE | 1 - 2 GHz Pin=35 dBm Pin=50 dBm | 15 7.5 | dBm | ||
| PULSED FLAT LEAKAGE | 1 - 2 GHz Pin=60 dBm, PW=25 µs, DC=5% | 15 | dBm | ||
| RECOVERY TIME | 1 - 2 GHz | 1.5 | µs | ||
| IP1dB | 1 - 2 GHz | 9 | dBm | ||
| IN/OUT DC BLOCKING | YES | ||||
| SIZE | 50 × 35 × 15 | mm | |||
| CONNECTOR IN | SMA (F) | ||||
| CONNECTOR OUT | SMA (F) |
Environmental Ratings
| TEMPERATURE: | -40ºC TO +85ºC (OPERATING) |
| -55ºC TO +125ºC (STORAGE) | |
| HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
| SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
| VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
| ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
| TEMP. SHOCK: | MIL-STD-202G, METHOD 107D COND. A |
