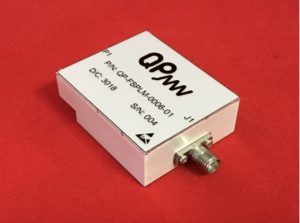

Data Table
| PARAMETER | TEST CONDITION | MIN. | TYP. | MAX. | UNITS |
|---|---|---|---|---|---|
| FREQUENCY STEP | 0.05 - 6.4 GHz | 5 | MHz | ||
| OUTPUT POWER | 0.05 - 6.4 GHz | 15 ± 1 | dBm | ||
| ATTENUATION STEP | 0.05 - 6.4 GHz | 1 | dB | ||
| ATTENUATION RANGE | 0.05 - 6.4 GHz | 31 | dB | ||
| SWITCHING TIME | 0.05 - 6.4 GHz | 100 | µs | ||
| OUTPUT RETURN LOSS | 0.05 - 6.4 GHz | 14 | dB | ||
| 2nd HARMONIC LEVEL | 2.3 - 6.4 GHz | -35 | dBc | ||
| 3rd HARMONIC LEVEL | 2.3 - 6.4 GHz | -60 | dBc | ||
| SUBHARMONIC LEVEL | 0.05 - 6.4 GHz | NO | |||
| SPURIOUS LEVEL | 0.05 - 6 GHz | -60 | dBc | ||
| PHASE NOISE @ 1 GHz | 1-kHz OFFSET 10-kHz OFFSET 100-kHz OFFSET 1-MHz OFFSET 5-MHz OFFSET | -100 -110 -114 -137 -150 | dBc/Hz | ||
| PHASE NOISE @ 3 GHz | 1-kHz OFFSET 10-kHz OFFSET 100-kHz OFFSET 1-MHz OFFSET 5-MHz OFFSET | -93 -105 -107 -130 -145 | dBc/Hz | ||
| PHASE NOISE @ 6 GHz | 1-kHz OFFSET 10-kHz OFFSET 100-kHz OFFSET 1-MHz OFFSET 5-MHz OFFSET | -85 -97 -102 -123 -140 | dBc/Hz | ||
| TEMPERATURE STABILITY | ±0.28 | ppm | |||
| AGING | 20 years | ±3 | ppm | ||
| DC VOLTAGE | 5 | V | |||
| POWER CONSUMPTION | 2.5 | W | |||
| DIGITAL CONTROL | TTL | ||||
| SIZE | 45 × 37 × 14.5 | mm | |||
| CASE | Z | ||||
| POWER/CTRL CONNECTOR | SAMTECH TFM 10X2 | ||||
| RF CONNECTOR | SMA (F) | ||||
Environmental Ratings
| TEMPERATURE: | -20ºC TO +70ºC (OPERATING) |
| -40ºC TO +85ºC (STORAGE) |
