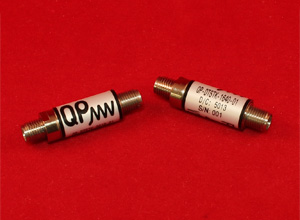

Data Table

PARAMETERTEST CONDITIONMIN.TYP.MAX.UNITS
VSWR16 - 40 GHz2.5:14:1
SENSITIVITY16 - 40 GHz10001500mV/mW
FLATNESS16 - 40 GHz
@ -20 dBm		±2dB
OUTPUT CAPACITANCE10pF
VIDEO IMPEDANCE100350Ohm
BIAS150µA
POWER HANDLING CW
PULSED (25% D.C.)		+20
+26		dBm
SIZEØ10.25 × 35.5mm
RF INPUT CONNECTOR2.92 mm (F)
RF OUTPUT CONNECTORSMA (F)

Environmental Ratings

TEMPERATURE:-40ºC TO +85ºC (OPERATING)
-55ºC TO +125ºC (STORAGE)
HUMIDITY:MIL-STD-202G, METHOD 103B COND. B
SHOCK:MIL-STD-202G, METHOD 213B COND. B
VIBRATION:MIL-STD-202G, METHOD 204D COND. B
ALTITUDE:MIL-STD-202G, METHOD 105C COND. B
TEMP. SHOCK:MIL-STD-202G, METHOD 107G COND. A
