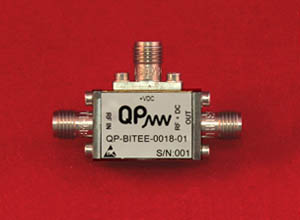

Data Table
| PARAMETER | TEST CONDITION | MIN. | TYP. | MAX. | UNITS |
|---|
| INSERTION LOSS | 0.01 - 18 GHz | | 1.2 | 1.5 | dB |
| VSWR | 0.01 - 18 GHz | | 1.5:1 | 1.8:1 | |
| DC VOLTAGE | | | | 16 | V |
| DC CURRENT | | | | 250 | mA |
| SIZE | | | 13.5 × 17.5 × 8.5 | | mm |
| CASE | | | A | | |
| DC CONNECTOR | | | SMA (F) | | |
| RF CONNECTOR | | | SMA (F) | | |
| RF + DC CONNECTOR | | | SMA (F) | | |
Environmental Ratings
|
| TEMPERATURE: | -40ºC TO +85ºC (OPERATING) |
| -55ºC TO +125ºC (STORAGE) |
| HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
| SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
| VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
| ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
| TEMP. SHOCK: | MIL-STD-202G, METHOD 107G COND. A |
