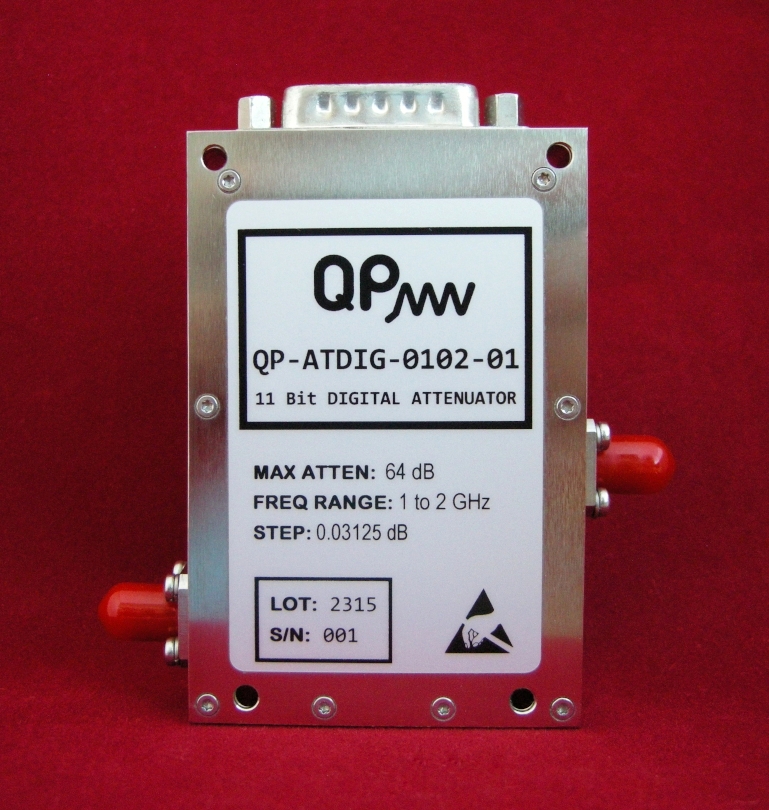

Data Table
| PARAMETER | TEST CONDITION | MIN. | TYP. | MAX. | UNITS |
|---|---|---|---|---|---|
| INSERTION LOSS | 1 - 2 GHz | 1.6 | dB | ||
| VSWR | 1 - 2 GHz | 1.6:1 | |||
| ATTENUATION STEP | 1 - 2 GHz | 0.03125 | dB | ||
| ATTENUATION RANGE | 1 - 2 GHz | 64 | dB | ||
| ATTENUATION WORD | 1 - 2 GHz | 11 | bits | ||
| CONTROL TYPE | TTL | ||||
| ATTENUATION FLATNESS | 1 - 2 GHz 0 - 64 dB | ±1.6 | dB | ||
| ATTENUATION ACCURACY | 1 - 2 GHz 0 - 64 dB | ±1 | dB | ||
| MONOTONICITY | 1 - 2 GHz | YES | |||
| TEMPERATURE DRIFT | 1 - 2 GHz 0 - 64 dB | ±0.75 | dB | ||
| SWITCHING TIME (ON) | 1 - 2 GHz | 500 | ns | ||
| SWITCHING TIME (OFF) | 1 - 2 GHz | 250 | ns | ||
| POWER HANDLING | CW PEAK | 20 | dBm | ||
| Vdd | +12 | +15 | V | ||
| Idd | 90 | mA | |||
| Vss | -15 | -12 | V | ||
| Iss | 20 | mA | |||
| SIZE | 50.8 × 76.2 × 20.8 | mm | |||
| CASE | M | ||||
| RF CONNECTORS | SMA (F) | ||||
| CONTROL INTERFACE | DA15P (M) | ||||
Environmental Ratings
| TEMPERATURE: | -40ºC TO +85ºC (OPERATING) |
| -55ºC TO +125ºC (STORAGE) | |
| HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
| SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
| VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
| ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
| TEMP. SHOCK: | MIL-STD-202G, METHOD 107G COND. A |
