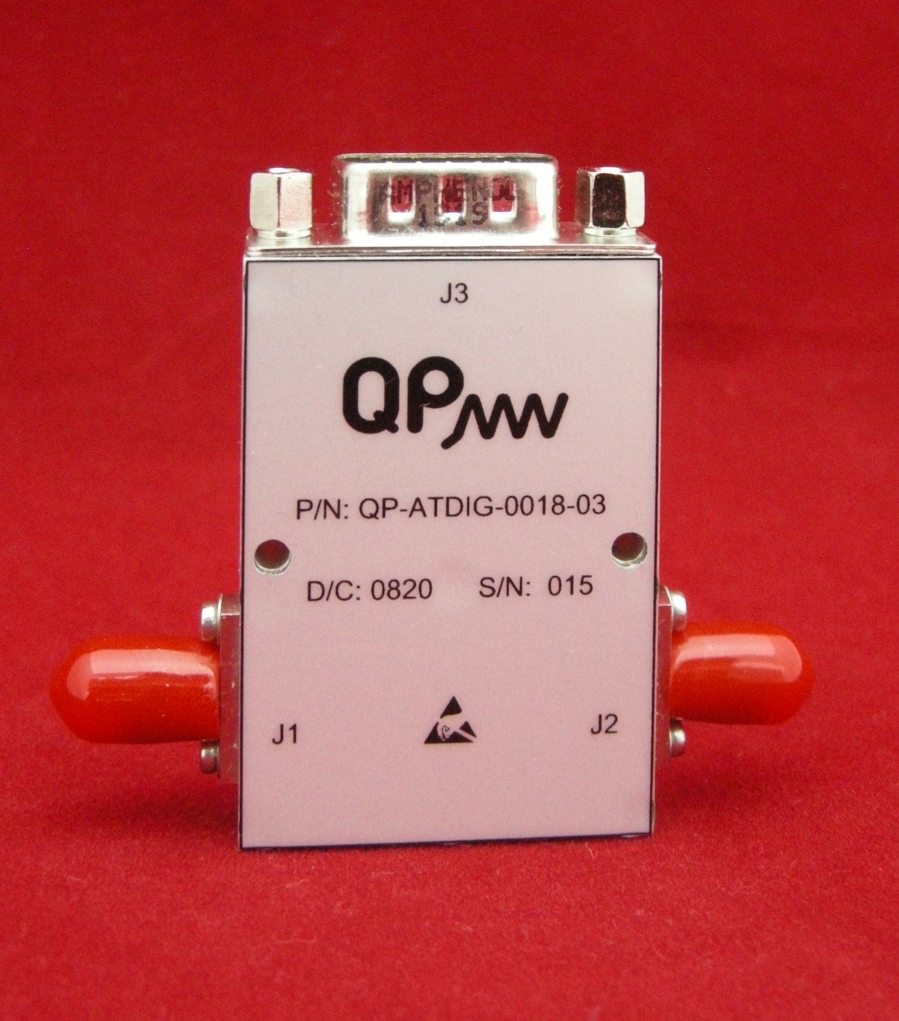

Data Table
| PARAMETER | TEST CONDITION | MIN. | TYP. | MAX. | UNITS |
|---|---|---|---|---|---|
| INSERTION LOSS | 0.5 - 2 GHz 2 - 6 GHz 6 - 12 GHz 12 - 18 GHz | 4.5 5.5 7 8.5 | dB | ||
| VSWR | 0.5 - 18 GHz | 1.5:1 | 2.2:1 | ||
| ATTENUATION STEP | 0.5 - 18 GHz | 0.5 | dB | ||
| ATTENUATION RANGE | 0.5 - 18 GHz | 94 | dB | ||
| ATTENUATION WORD | 0.5 - 18 GHz | 8 | bits | ||
| CONTROL TYPE | LVTTL | ||||
| ATTENUATION ACCURACY | 0.5 - 18 GHz 0 - 20 dB | ±0.5 | dB | ||
| ATTENUATION ACCURACY | 0.5 - 18 GHz 20.5 - 40 dB | ±1 | dB | ||
| ATTENUATION ACCURACY | 0.5 - 18 GHz 40.5 - 60 dB | ±1.5 | dB | ||
| ATTENUATION ACCURACY | 0.5 - 18 GHz 60.5 - 70 dB | ±2 | dB | ||
| ATTENUATION ACCURACY | 0.5 - 18 GHz 70.5 - 80 dB | ±3 | dB | ||
| ATTENUATION ACCURACY | 0.5 - 18 GHz 80.5 - 94 dB | ±4 | dB | ||
| MONOTONICITY | 0.5 - 18 GHz UP TO 62-dB ATT. STATE | YES | |||
| TEMPERATURE DRIFT | 0.5 - 18 GHz | 0.02 | dB/ºC | ||
| SWITCHING TIME | 0.5 - 18 GHz | 125 | 300 | ns | |
| POWER HANDLING | 0.5 - 18 GHz | 25 | dBm | ||
| VCC | +12 | V | |||
| ICC | 25 | mA | |||
| -VCC | -12 | V | |||
| -ICC | 25 | mA | |||
| SIZE | 12.9 × 44.7 × 30.9 | mm | |||
| CASE | SA | ||||
| RF CONNECTORS | SMA (F) | ||||
| CONTROL INTERFACE | DE15P (M) | ||||
Environmental Ratings
| TEMPERATURE: | -40ºC TO +85ºC (OPERATING) |
| -55ºC TO +125ºC (STORAGE) | |
| HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
| SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
| VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
| ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
| TEMP. SHOCK: | MIL-STD-202G, METHOD 107G COND. A |
