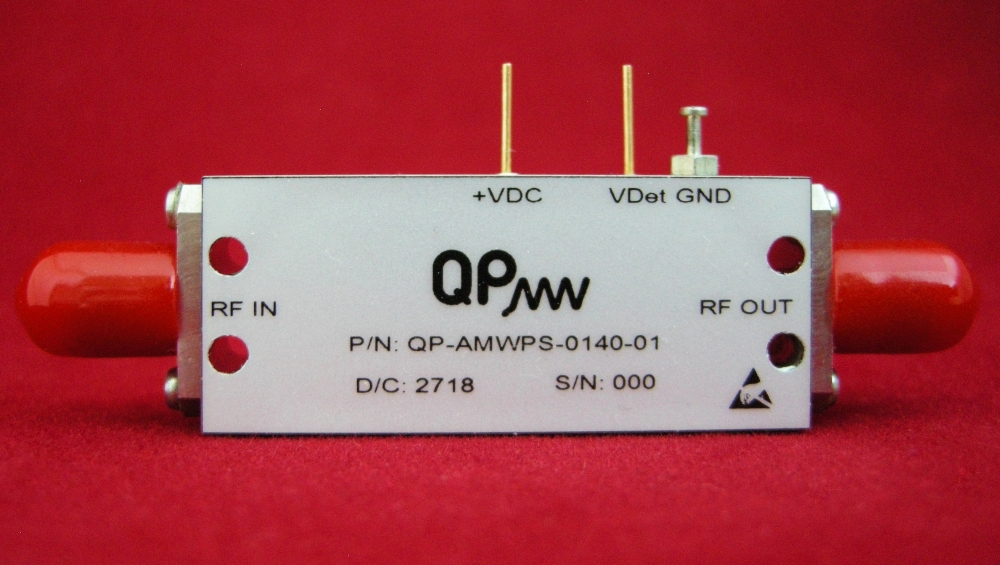

Data Table
| PARAMETER | TEST CONDITION | MIN. | TYP. | MAX. | UNITS |
|---|---|---|---|---|---|
| GAIN | 1 GHz 18 GHz 40 GHz | 23 28 35 | dB | ||
| POSITIVE SLOPE | 1 - 40 GHz | 12 | dB | ||
| FLATNESS | 1 - 40 GHz | -2 | 2 | dB | |
| NOISE FIGURE | 1 - 40 GHz | 10 | dB | ||
| OP1dB | 1 - 25 GHz 25 - 40 GHz | 16 12 | dBm | ||
| OIP3 | 1 - 20 GHz 20 - 40 GHz | 26 22 | dBm | ||
| VSWR | 1 - 40 GHz | 2:1 | |||
| DC VOLTAGE | 1 - 40 GHz | 12 | V | ||
| DC CURRENT | 1 - 40 GHz | 740 | mA | ||
| RF POWER | 1 - 40 GHz | 15 | dBm | ||
| DETECTED Pout | 1 - 40 GHz | -5 | dBm | ||
| SIZE | 16.8 × 40 × 7.6 | mm | |||
| CASE | TA | ||||
| RF IN CONNECTOR | 2.92 mm (M) | ||||
| RF OUT CONNECTOR | 2.92 mm (F) |
Environmental Ratings
| TEMPERATURE: | -40ºC TO +85ºC (OPERATING) |
| -55ºC TO +125ºC (STORAGE) | |
| HUMIDITY: | MIL-STD-202G, METHOD 103B COND. B |
| SHOCK: | MIL-STD-202G, METHOD 213B COND. B |
| VIBRATION: | MIL-STD-202G, METHOD 204D COND. B |
| ALTITUDE: | MIL-STD-202G, METHOD 105C COND. B |
| TEMP. SHOCK: | MIL-STD-202G, METHOD 107G COND. A |
