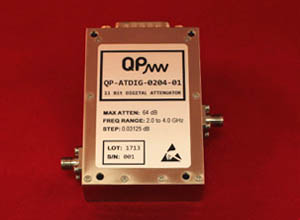

QP-ATDIG-0204-01
Test-Data-m

Data Table

PARAMETERTEST CONDITIONMIN.TYP.MAX.UNITS
INSERTION LOSS2 - 4 GHz1.6 dB
VSWR2 - 4 GHz1.6:1
ATTENUATION STEP2 - 4 GHz0.03125dB
ATTENUATION RANGE2 - 4 GHz64dB
ATTENUATION WORD2 - 4 GHz11bits
CONTROL TYPETTL
ATTENUATION FLATNESS2 - 4 GHz
0 - 64 dB
±1.6 dB
ATTENUATION ACCURACY2 - 4 GHz
0 - 64 dB
±1dB
TEMPERATURE DRIFT2 - 4 GHz
0 - 64 dB
±0.75dB
SWITCHING TIME (ON)2 - 4 GHz500ns
SWITCHING TIME (OFF)2 - 4 GHz250ns
MONOTONICITY2 - 4 GHzYES
POWER HANDLINGCW
PEAK
20dBm
Vdd+12+15V
Idd90mA
Vss-15-12V
Iss20mA
SIZE50.8 × 76.2 × 20.8mm
CASEM
RF CONNECTORSSMA (F)
CONTROL INTERFACEDA15P (M)

Environmental Ratings

TEMPERATURE:-40ºC TO +85ºC (OPERATING)
-55ºC TO +125ºC (STORAGE)
HUMIDITY:MIL-STD-202G, METHOD 103B COND. B
SHOCK:MIL-STD-202G, METHOD 213B COND. B
VIBRATION:MIL-STD-202G, METHOD 204D COND. B
ALTITUDE:MIL-STD-202G, METHOD 105C COND. B
TEMP. SHOCK:MIL-STD-202G, METHOD 107G COND. A
